- 80cm printing width complete printing solution
- 30% lower production costs
- Safe and worry-free
-Outstanding cost-effectiveness

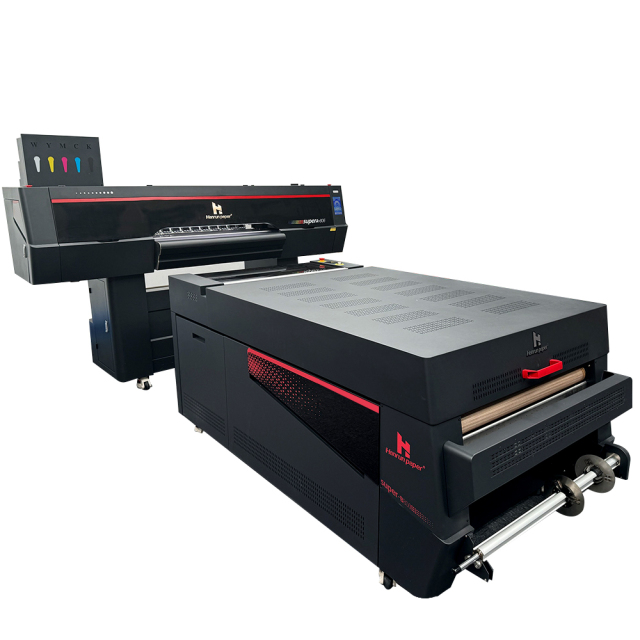

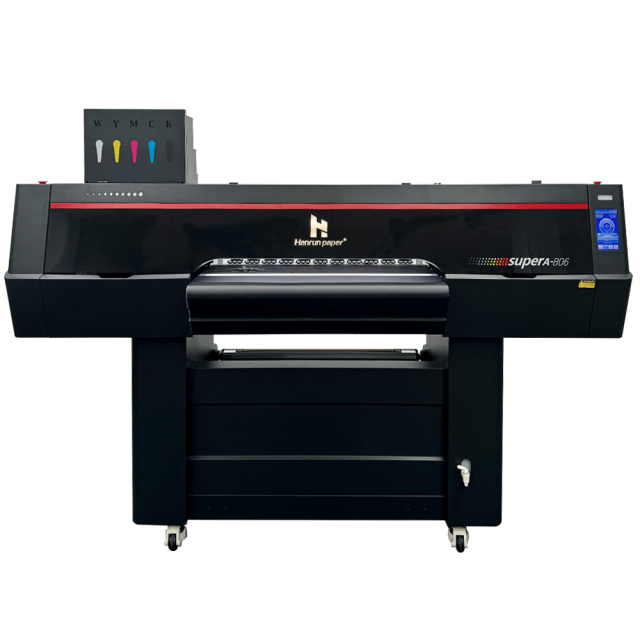

Super A-806 DTF Printer
The Super A-806 printer features a brand-new design, with a print width of 800 millimeters and six EPSON I3200 A1 printheads, offering faster printing speeds while ensuring outstanding detail accuracy. Equipped with an intelligent system, it enhances machine stability, reduces manual intervention, and is compatible with various RIP software to easily achieve high-quality output. It is your ideal choice for expanding production and improving economic benefits.
A newly designed intelligent printing solution
Whether it's the number of printheads,the intelligent design of the printer,or the innovative powder shaker design,everything is optimized to meet the demands of modern production.
6
Printheads
Six printheads not only ensure stable printing performance but also significantly enhance printing precision and quality.
30%
Lower Production Costs
Increase production efficiency, reduce investment costs, and save production expenses.
100%
Complete Printing Solution
Whether it's the number of From 80cm DTF film, compatible ink, and hot melt powder to the Super A-806 printer, 80cm
powder shaker, cutter, heat press, and a comprehensive RIP software system—providing you with a one-stop servie.
Features
# Complete DTF Printing Solution
# More Powerful Production Capacity
# Perfectly Presents Fine Details
# Safe and Worry-Free
# Easy Maintenance, Labor-Saving
# Intelligent Design, Compatible with Cadlink/Maintop/Photoprint
# Smart touch screen, easy to use
# Outstanding Cost-Effectiveness
Work Flow
Details
Color Excellence, OEKO-TEX® Compliant
+ Supports 9-color color schemes, natural color transition, and accurate restoration of pattern details
+ Hanrun DTF ink, bright and stable color, through OEKO-TEX ECO PASSPORT certification, safe and worry-free
+ Hanrun DTF film EVO and PRO series are certified by OEKO-TEX ECO PASSPORT to bring perfect transfer effect
Steady Performance Scalable Productivity
+ Equipped with 6 EPSON I3200 A1 nozzles, it can reach 33 ㎡/h (6 PASS) in five-color mode
+ Equipped with a 3L ink bucket (5-color mode), it can support continuous printing of 350 ㎡ (according to color ink consumption)
+ Fully automatic feeding device, support the maximum unwinding length of 500 meters
+ Equipped with front, middle and rear heating system, the front heating platform is extended to bring faster drying effect and improve efficiency
Guaranteed Safe Operation
+ The 7-inch LCD touch screen integrates ink quantity display, ink shortage alarm and other functions, providing English and Spanish
+ Equipped with three-color lights and task progress indicator light, equipped with upper and lower lighting, various states are clear at a glance
+ Anti-static Rubber Roller - Eliminates static interference on films for stable operation
Human-centered Design
+ Dual emergency stop switches (left & right) ensure quick response to any emergency
+ Equipped with a slow-release hinge for safer use
+ Equipped with leakage protection function, safe and worry-free
Specification
| Super A-806 DTF Printer | ||
| Model | SUPER A-806 | |
| Printhead | 6 EPSON i3200 A1 | |
| Ink |
5-Color 3L INK TANKS |
9-Color 1.5L INK TANKS |
| Print Resolution/Speed |
4pass(360*2400dpi): 50m2/h |
4pass(360*2400dpi):29m2/h |
| Three Heating sections | Pre-heater; Printing bed heater; Rear heater | |
| Printing media width | DTF film 800mm(315") | |
| RIP software | Photoprint/Maintop/CADlink | |
| Language | English | |
| Power | 2KW | |
| Printer size | 2500(L)（984"）*840(W)(331")*1450(H)(571")mm 345kg | |
| Packing size | 2590(L)(1020")*1050(W)(413")*1660(H)(654")mm 451kg | |
| Working environment | Temperature: 20-35℃, Humidity:35%-65% | |
| Functional item | Shake powder control/Powder amount control/Temperature control | |
| Voltage | AC110V / 220V 50HZ/60HZ |
|
| SUPER-B800 DTF POWDER SHAKER | |
| Model | SUPER-B800 |
| Max width | 810mm(319") |
| Heat temperature | 0-400℃ |
| Voltage | AC110V / 220V 50HZ/60HZ |
| Power | Generally works at 2.7kw (Max 4.1kw) |
| Oven length | 1490mm(587") |
| Machine Size | 2190mm(L)(862")*1150mm(W)(453")*935mm(H) (368") 337kg |
| Packing size | 2330mm(L)(917")x1280mm(W)(504")x1210mm(H)(476") 465kg |
NOTE：Please keep the powder shaker running for 15 minutes after printing is completed. This helps with internal maintenance of the machine and ensures stable print quality for the next job.
Production Speed
The Super Series DTF printers have always been Hanrun Paper's most intelligent lineup, integrating advanced automation features to enhance production efficiency and printing stability. From smart printhead maintenance and automatic white ink circulation to seamless RIP software integration, the Super Series delivers a more convenient, efficient, and precise printing experience, empowering businesses to achieve higher-quality digital printing production.
| MODEL | WIDTH | QUANTITY(10cm*10cm pattern design) |
 |
800 | 4500 pcs/h |
 |
1200 | 3300 pcs/h |
|
|
600 | 1300 pcs/h |

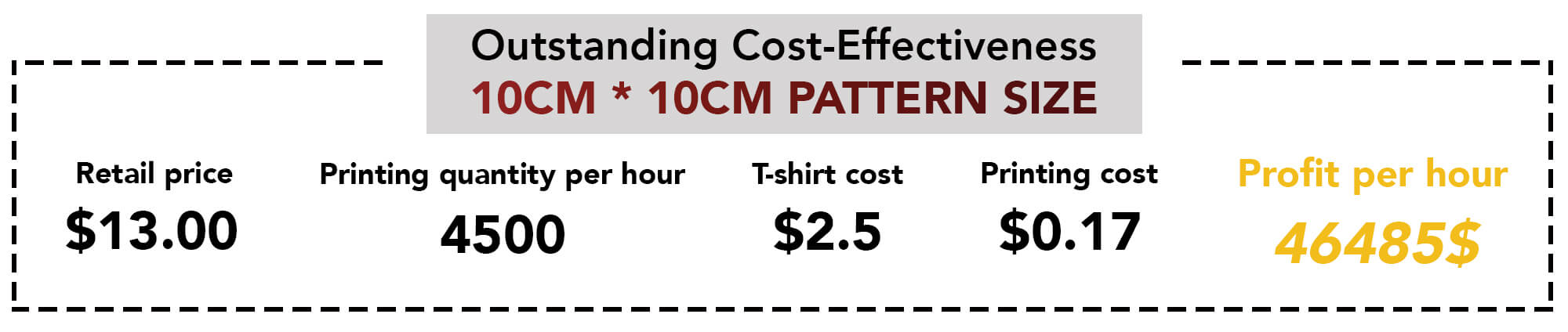

Outstanding Cost-Effectiveness
Powerful RIP software
With the powerful Cadlink software, you can easily remove backgrounds with just one click, eliminating the need for tedious operations in Photoshop or other design software. This all-in-one solution enables a seamless design-to-print workflow, while also offering advanced features such as white ink enhancement and automatic white ink channel creation. Truly easy to use, requiring no complex learning process.
Application
