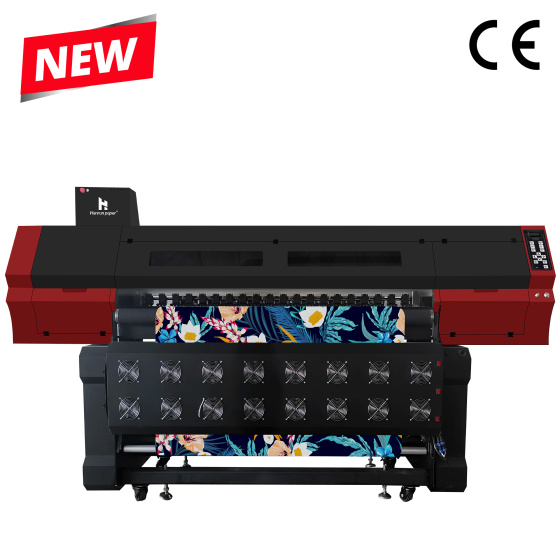

Years of industry experience enable us to accurately and reliably identify the needs of customers in the actual production process, so we have developed and launched the sublimation printer SP-S1804, which is equipped with 4 i3200 print heads, ultra-quiet THK guide rail, advanced tension system, back releasing and collecting functions, etc. to bring you an efficient and stable printing experience. You can produce clothing, fabric, canvas, soft signage, flags, home decoration and other decorative products in large quantities with consistent quality and minimal production costs, so that you can stand out from the competition in the industry.
Details
1800mm print width
1800mm printing width, higher printing efficiency, and more diversified application scenarios.
Low-ink alarm
Each color has a separate low-ink alarm.
Advanced tension system
An inflatable shaft with a back-releasing and collecting function ensures the stability of the rewinding system.

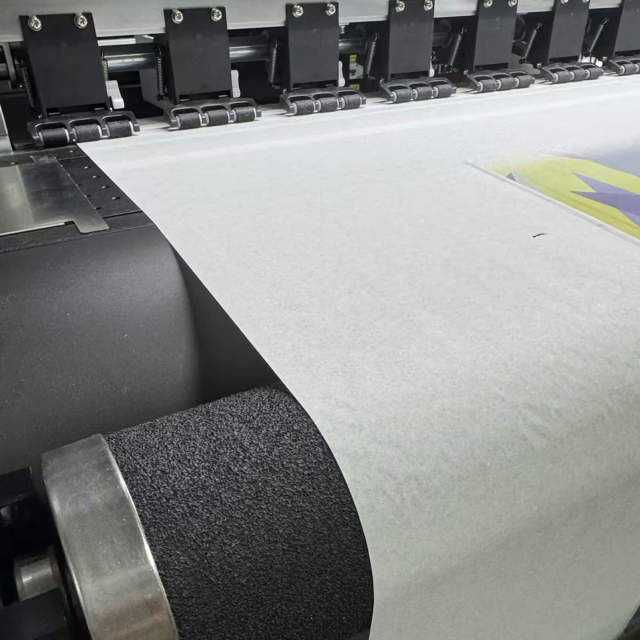

Advanced paper press roller system
High-density paper rollers, which can be adjusted individually, ensure flexible operation.
4 i3200-A1 printheads
4 high-quality printheads, greatly improve printing quality and efficiency.

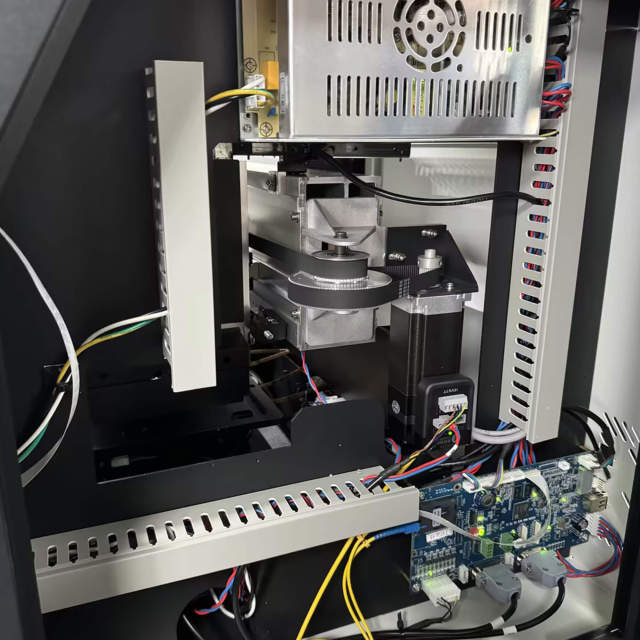

High-quality DC servo motor
High-quality DC servo motors with excellent feedback systems enable precise position, speed and torque control for good stability and longer service life.
THK high-precision mute rail
The high accuracy and stability of THK rail can ensure the smooth movement of the printer, reduce errors, and improve printing accuracy and quality, especially for applications requiring high-precision printing.
Safety and environmental certificates
Our sublimation ink has obtained the internationally renowned bluesign® certification OEKO-TEX®ECO PASSPORT security technology certification to provide users with safe and environmentally friendly product services.
| Technical parameter | |
|---|---|
| Model | SP-S1804 |
| Printhead | 4*i3200A1 |
| Printing Width | ≤1830mm |
| Media Type | Sublimation Paper |
| Ink Cartridges | Type: Dye Sublimation ink Capacity: 4*4 CISS (220ml ink cartridge with 3L ink tank) Color: CMYK |
| Printing Resolution | Maximum 3600 dpi |
| Speed | 1 pass(360x1200dpi): 180sqm/h 2 pass(360x2400dpi): 120sqm/h |
| Media Heating System | Integrated post heater & infrared Dryer & Fan system |
| RIP software | PP/Maintop/Cadlink |
| Power Requirements | Input voltage: AC220v±5%, 50HZ+1 Printer: 2KW Drying unit power: 7.2kw |
| Printer size/weight | 3311x1250x1750 mm / 550KG |
| Packing size/weight | 3550x1140x1790 mm / 620KG |
| Working environment | Power on: Temperature: 59°F to 90°F [15℃ to 32℃ ]; Humidity: 35 to 80% (no condensation) Power off: Temperature: 41°F to 104°F [5℃ to 40℃]; Humidity: 20 to 80% (no condensation) |
