Years of industry experience enable us to accurately and reliably identify the needs of customers in the actual production process, so we have developed and launched the sublimation printer SP-S1602, which is equipped with 2 i3200 printheads, ultra-quiet THK guide rail, advanced tension system, etc. to bring you an efficient and stable printing experience. You can produce with consistent quality and minimal production costs.
Details
1600mm print width
1600mm printing width, higher printing efficiency, and more diversified application scenarios.
Low-ink alarm
Each color has a separate low-ink alarm.
Advanced tension system
An inflatable shaft with a back-releasing and collecting function ensures the stability of the rewinding system.
Advanced paper press roller system
High-density paper rollers, which can be adjusted individually, ensure flexible operation.
2 i3200-A1 printheads
2 high-quality printheads, greatly improve printing quality and efficiency.
High-quality DC servo motor
High-quality DC servo motors with excellent feedback systems enable precise position, speed and torque control for good stability and longer service life.
THK high-precision mute rail
The high accuracy and stability of THK rail can ensure the smooth movement of the printer, reduce errors, and improve printing accuracy and quality, especially for applications requiring high-precision printing.
Safety and environmental certificates
Our sublimation ink has obtained the internationally renowned bluesign® certification OEKO-TEX®ECO PASSPORT security technology certification to provide users with safe and environmentally friendly product services.

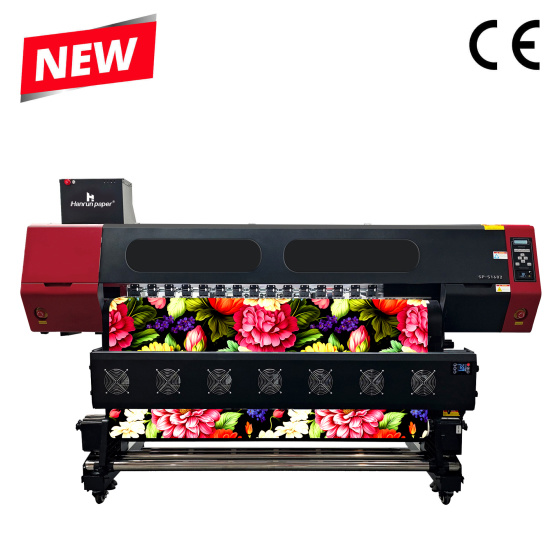

| SP-S1602 Sublimation Printer | |
|---|---|
| Model | SP-S1602 |
| Printhead | 2*i3200A1 |
| Media Type | Sublimation Paper |
| Width | ≤1600mm |
| Thickness | 1mm |
| Weight | 60kg |
| Ink Cartridges | Type: Dye Sublimation ink Capacity: 1.5L direct supply system Color: CMYK |
| Printing Resolution | Maximum 3600 dpi |
| Speed | 3 pass (360x1200dpi): 50sqm/h |
| RIP Software | PP/Maintop/Cadlink |
| Power | Printer: 2KW Drying unit power: 4.8kw |
| Power Supply | AC220v±5%, 50HZ+1 |
| Printer Size/Weight | 2585*685*1482mm / 250KG |
| Packing Size/Weight | 2700*760*760mm / 280KG |
| Working Environmen | Power on: Temperature: 59°F to 90°F [15℃ to 32℃ ]; Humidity: 35 to 80% (no condensation) Power off: Temperature: 41°F to 104°F [5℃ to 40℃]; Humidity: 20 to 80% (no condensation) |
