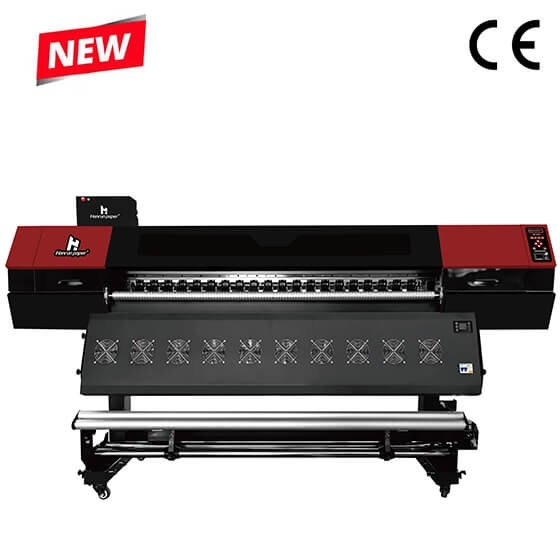

EVO-S1804 Sublimation Printer
The new 1.8m 4-head Industrial Sublimation Printer is engineered for users who need high-volume production with a lower initial investment. Equipped with four high-precision industrial printheads, it delivers fast, consistent, and vibrant output while maintaining excellent stability. Backed by nearly 20 years of digital printing expertise, Hanrun Paper ensures proven quality, reliable performance, and trustworthy after-sales support—making this printer a dependable choice for professional production environments.
Sublimation Printing Work Flow
Details
Baseplate Heating

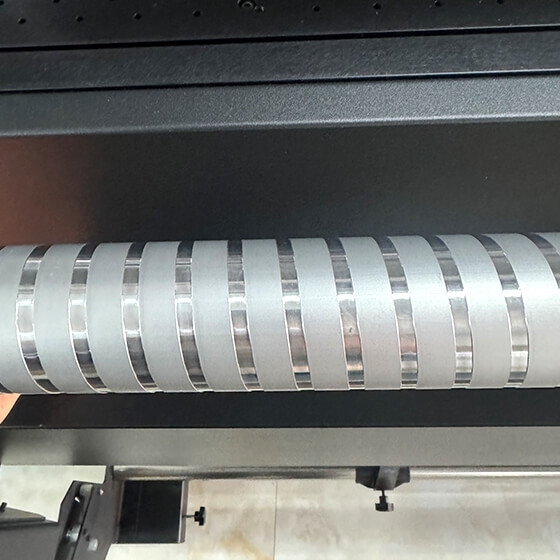

Advanced paper press roller systemHigh-density paper rollers, which can be adjusted individually, provide flexible operation.

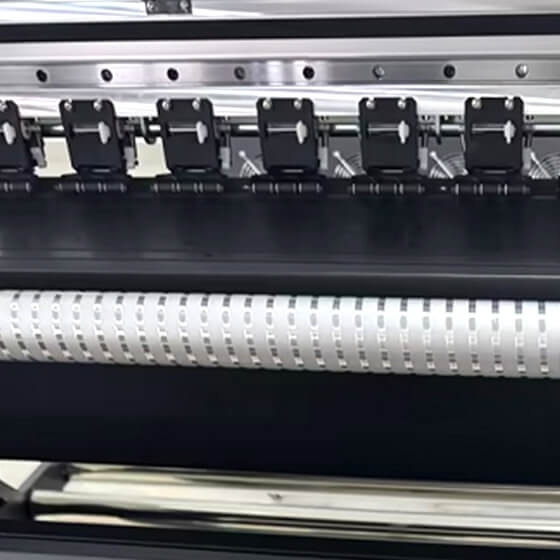

Feed Roller System for Enhanced Media StabilityThe advanced feed roller mechanism significantly improves material stability during operation, ensuring smoother transport, consistent tension, and more accurate printing results.

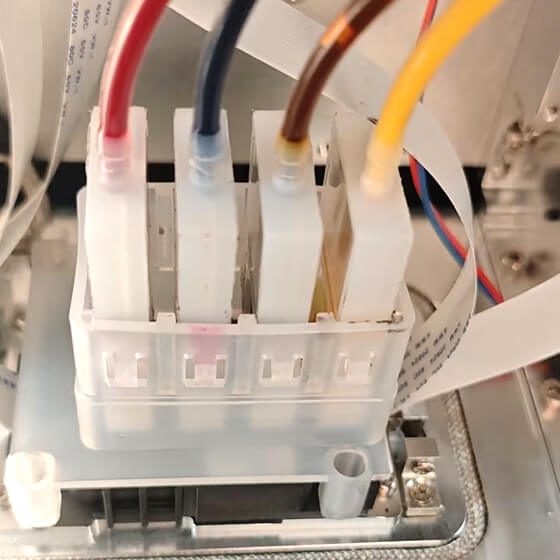

4 i3200-A1 print heads
Equipped with 4 high-quality print heads, greatly improves printing quality and efficiency.
Rear-feed & front take-upThis design minimizes paper curling and wrinkling, guaranteeing consistent print quality while improving workflow efficiency.
OEKO-TEX® ECO PASSPORTHanrun paper's sublimation ink has obtained the internationally renowned bluesign® certification, OEKO-TEX®ECO PASSPORT security technology certification, to provide users with safe and environmentally friendly product services.
Features
Cost-effective industrial solution: Achieve industrial-level speed and stability with significantly lower investment costs.
High-speed 4-head configuration： Four industrial printheads (i3200-A1) greatly boost productivity and ensure fast delivery for large-volume orders.
Popular 1.8m wide format: Compatible with mainstream sublimation media, fabric rolls, apparel production, and home-textile applications.
Stable ink delivery & vivid colors: Optimized ink supply maintains consistent pressure for bright colors, smooth gradients, and sharp details.
Rear-feed & front take-up system: Provides stable media tension for straighter feeding, fewer wrinkles, and reliable long-run printing performance.
Industrial-grade chassis: Enhanced frame and precision rail system ensure accuracy and stability during continuous operation.
Smart and easy operation: Easy control panel and user-friendly maintenance streamline the entire workflow.
Specification
| EVO-S1804 Sublimation Printer | ||
| Model | EVO-S1804 | |
| Printheads | 4*i3200A1 | |
| Printing width | ≤1820mm | |
| Medium weight | ≤60kg | |
| Medium type | Sublimation Paper | |
| Ink Cartridges | Type: Dye Sublimation ink | |
| Capacity: 220ml ink cartridge with 3L ink tank | ||
| Printing Resolution | Maximum 2400 dpi | |
| Speed | 2 pass:180sqm/h 3 pass:90sqm/h |
|
| RIP software | PP/Maintop/Cadlink | |
| Power requirement |
Input voltage Drying unit power |
AC220v±10%, 50/60HZ 2KW 8.4KW |
| Printer size/weight | 3158mm(L)x1000mm(W)x1700mm (H) / 350kg | |
| Packing size/weight | 3350mm(L)x760mm(W)x1050mm(H) / 400kg | |
| Working environment | Power on: Temperature: 59°F to 90°F [15℃ to 32℃ ] Humidity: 35 to 80% (no condensation) |
|
| Power off: Temperature: 41°F to 104°F [5℃. to 40℃] Humidity: 20 to 80%(no condensation) |
||
Application
